Technical Spec :

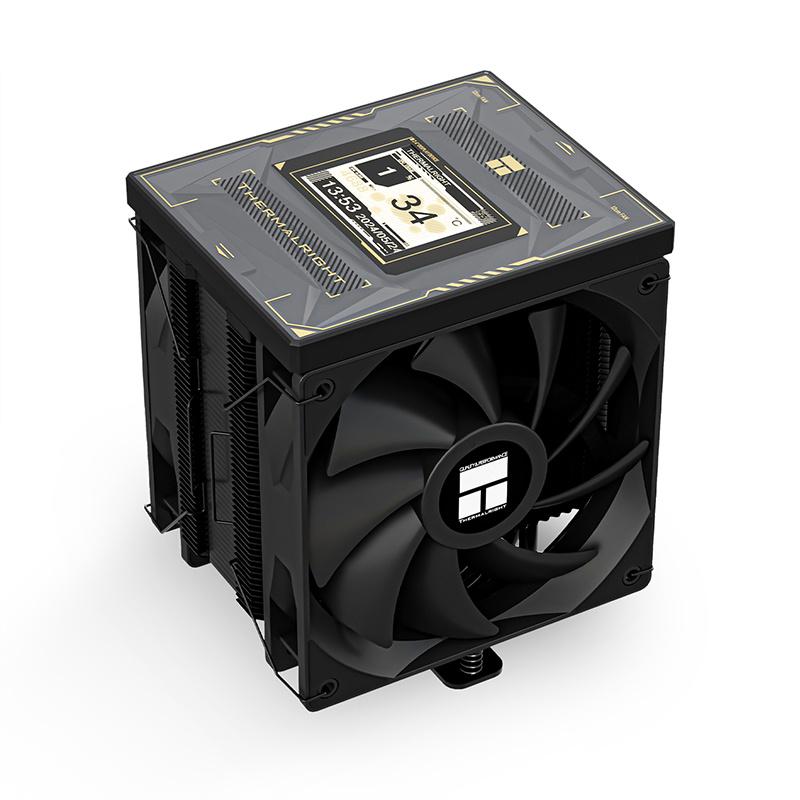

Heatsink Specifications:
Dimension: L124 mm x W52 mm x H156 mm
LCD DISPLAY Connector：SATA Port＋MB 9 pin/USB Port
Heat pipes: 6mm heatpipe x 6 units
Copper Base：C1100 Pure copper nickel plated

TL-C12B V2 FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 66.17 CFM (MAX)
Air Pressure: 1.53 mm H2O (MAX)
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing

TL-C12RB V2 FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 58 CFM (MAX)
Air Pressure: 1.53 mm H2O (MAX)
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
